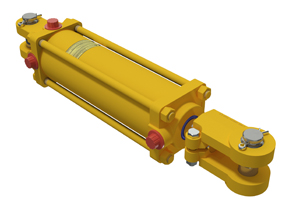

HTH - Tie-Rod Cylinder

  • ROD: Steel, induction hardened to 45-50 Rockwell C and chrome plated 0.001" thick for a final surface hardness of 69-71 Rockwell C. ASTM B117-07a salt spray testing up to 96 hours.
  • PISTON: Ductile Iron, for increased durability
  • TUBE: Steel, Honed and precision finished for extended seal life
  • STEEL TIE-ROD: High tensile strength to prevent stretching
  • END CAP: With 2 ORB ports at 90 degrees to each other for greater flexibility of assembly
  • ATTACHMENT: Ductile Iron, threaded female clevis, adjustable with locking bolt
  • PIN: Steel, Zinc Plated
  • SEALS: Top Quality, manufactured in USA/Europe
  • PAINT : High quality paint for corrosion resistance up to 360 hours. [Standard Color: Black]


Specifications

  • 1
    PRESSURE
    3000 PSI
  • 2
    BORE
    2.000" ~ 5.000"
  • 3
    STROKE
    4.000" ~ 48.000"
  • 4
    ROD
    1.125" ~ 2.000"
  • 5
    RETRACTED LENGTH
    14.250" ~ 60.250"
  • 6
    PIN
    1.000"




Catalog Pages

Consult HTH Catalog pages for complete information on every models (PDF 1.65 Mo)
