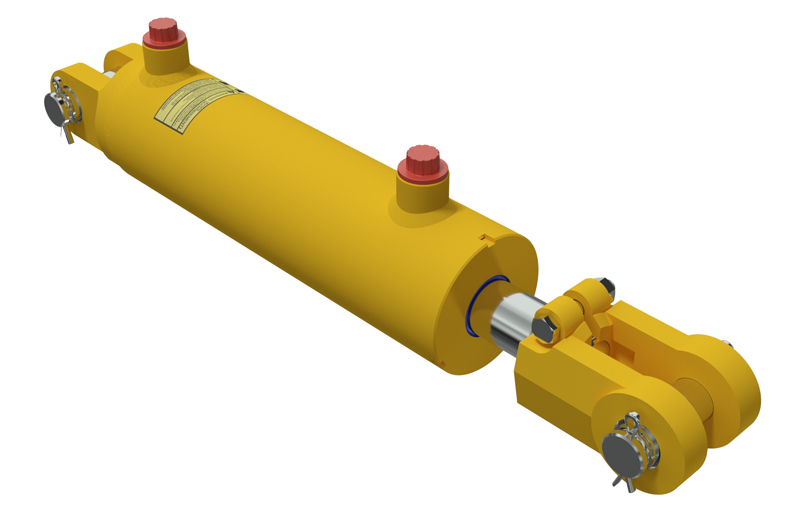

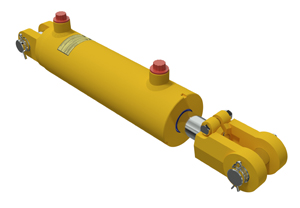

HTG - Welded Cylinder

  • ROD: Steel, induction hardened to 45-50 Rockwell C and chrome plated 0.001" thick for a final surface hardness of 69-71 Rockwell C. ASTM B117-07a salt spray testing 96 hours
  • PISTON: Ductile Iron, for increased durability
  • TUBE: Steel, Honed and precision finished
  • CONSTRUCTION: Heavy Duty welded construction
  • ROD END: Ductile Iron, threaded female clevis, adjustable with locking bolt
  • GLAND: Threaded
  • SEALS: Top Quality, manufactured in USA/Europe


Specifications

  • 1
    PRESSURE
    3000 PSI
  • 2
    BORE
    2.000" ~ 4.000"
  • 3
    STROKE
    4.000" ~ 36.000"
  • 4
    ROD
    1.125" ~ 1.750"
  • 5
    RETRACTED LENGTH
    14.250" ~ 46.250"
  • 6
    PIN
    1.000"




Catalog Pages

Consult HTG Catalog pages for complete information on every models (PDF 1.86 Mo)
