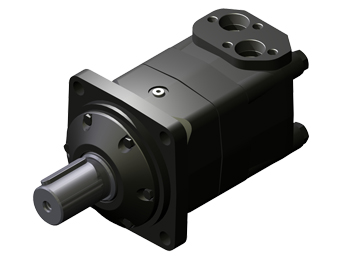

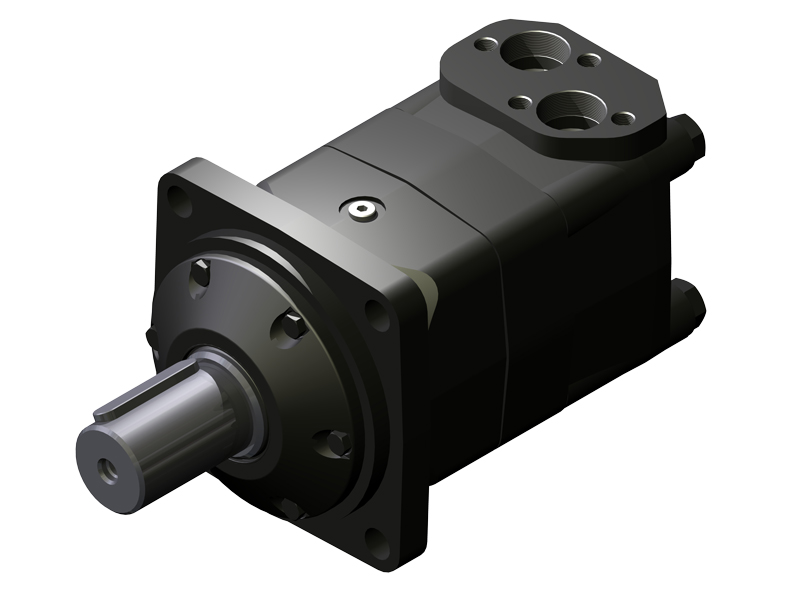

Hydraulic Motor EBMV

APPLICATIONS:

  • Conveyors
  • Metal working machines
  • Road building machines
  • Machines for agriculture
  • Food industries
  • Mining machines
  • Plastic and rubber machinery
  • Special vehicules
  • Etc...


Max Value of operating motor continuously

  • 1
    DISPLACEMENT
    333 cm3/rev ~ 990 cm3/rev
    20.32 in3/rev ~ 60.41 in3/rev
  • 2
    TORQUE
    920 Nm ~ 2015 Nm
    8143 lb-in ~ 17834 lb-in
  • 3
    PRESSURE
    14 MPa ~ 20 MPa
    2031 PSI ~ 2901 PSI
  • 4
    SPEED
    200 rpm ~ 510 rpm

  • 5
    POWER
    28.6 kW ~ 47 kW
    38.4 HP ~ 63.0 HP
  • 6
    FLOW
    160 L/min ~ 200 L/min
    42.3 GPM ~ 52.8 GPM


Options

  • Disc valve motor
  • Geroler gear set
  • Low pressure of start-up
  • Tapered roller bearings for high axial and radial forces
  • Flange and wheel mount
  • Straight, splined and tapered shafts
  • SAE, BSP, Metric and NPTF ports
