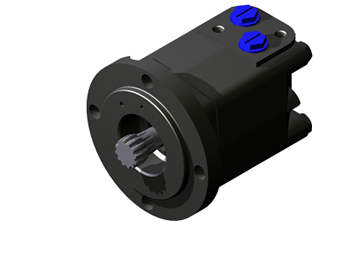

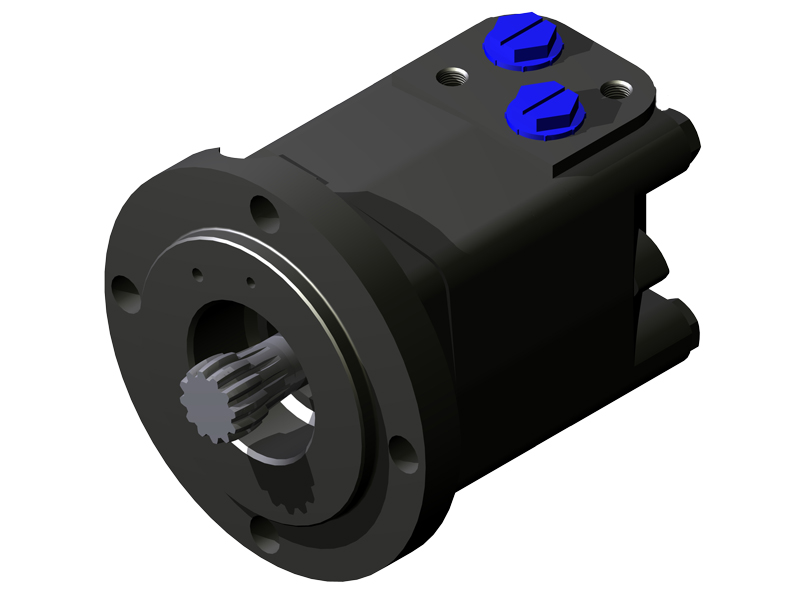

Hydraulic Motor EBMSS

APPLICATIONS:

  • Conveyors
  • Metal working machines
  • Road building machines
  • Machine for agriculture
  • Food industries
  • Mining machinery
  • Special vehicules
  • Etc...


Max Value of operating motor continuously

  • 1
    DISPLACEMENT
    80.6 cm3/rev ~ 370 cm3/rev
    4.92 in3/rev ~ 22.58 in3/rev
  • 2
    TORQUE
    190 Nm ~ 560 Nm
    1682 lb-in ~ 4956 lb-in
  • 3
    PRESSURE
    10 MPa ~ 17.5 MPa
    1450 PSI ~ 2538 PSI
  • 4
    SPEED
    200 rpm ~ 800 rpm

  • 5
    POWER
    11.8 kW ~ 19.5 kW
    15.8 HP ~ 26.1 HP
  • 6
    FLOW
    65 L/min ~ 75 L/min
    17.2 GPM ~ 19.8 GPM


Options

  • Disc valve motor
  • Geroler gear set
  • High pressure shaft seal
  • Tapered roller bearings for high axial and radial forces
  • Flange and wheel mount
  • Short motor
  • Straight, splined and tapered shafts
  • SAE, BSP, Metric and NPTF ports
