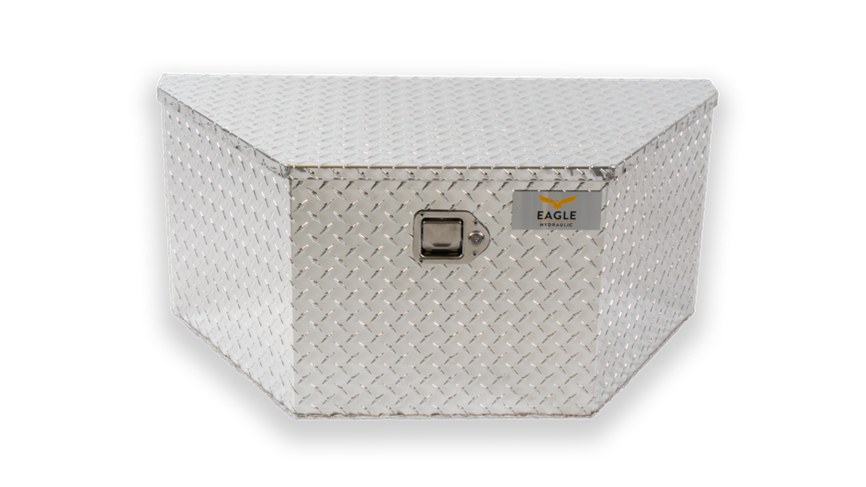

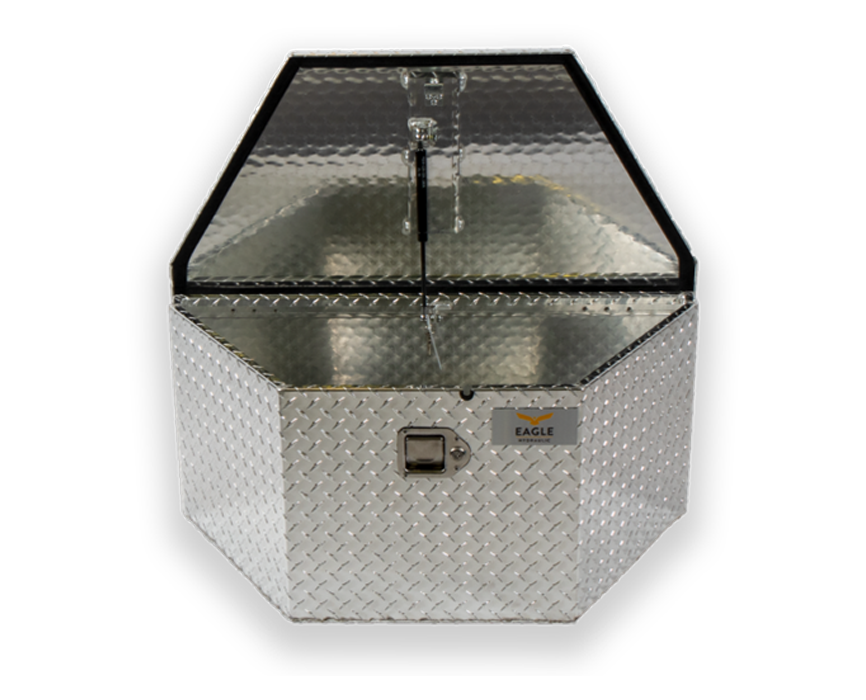

SPECIFICATIONS:
CHECKER-PLATE ALUMINUM
1/8" PLATE THICKNESS
36" x 18.75" x 16.36"
EMPTY AND UNDRILLED

SPECIFICATIONS:
7 TONS INVERSE
STROKE: 90"
BORE: 3.75"
PORT: SAE#8

TYPICAL APPLICATION:
DUMP TRAILER
DUMP TRUCK

SPECIFICATIONS:
12 TONS INVERSE
STROKE: 90"
BORE: 4.4"
PORT: SAE#8

TYPICAL APPLICATION:
DUMP TRAILER
DUMP TRUCK

SPECIFICATIONS:
12 TONS INVERSE
STROKE: 108"
BORE: 4.4"
PORT: SAE#8

TYPICAL APPLICATION:
DUMP TRAILER
DUMP TRUCK

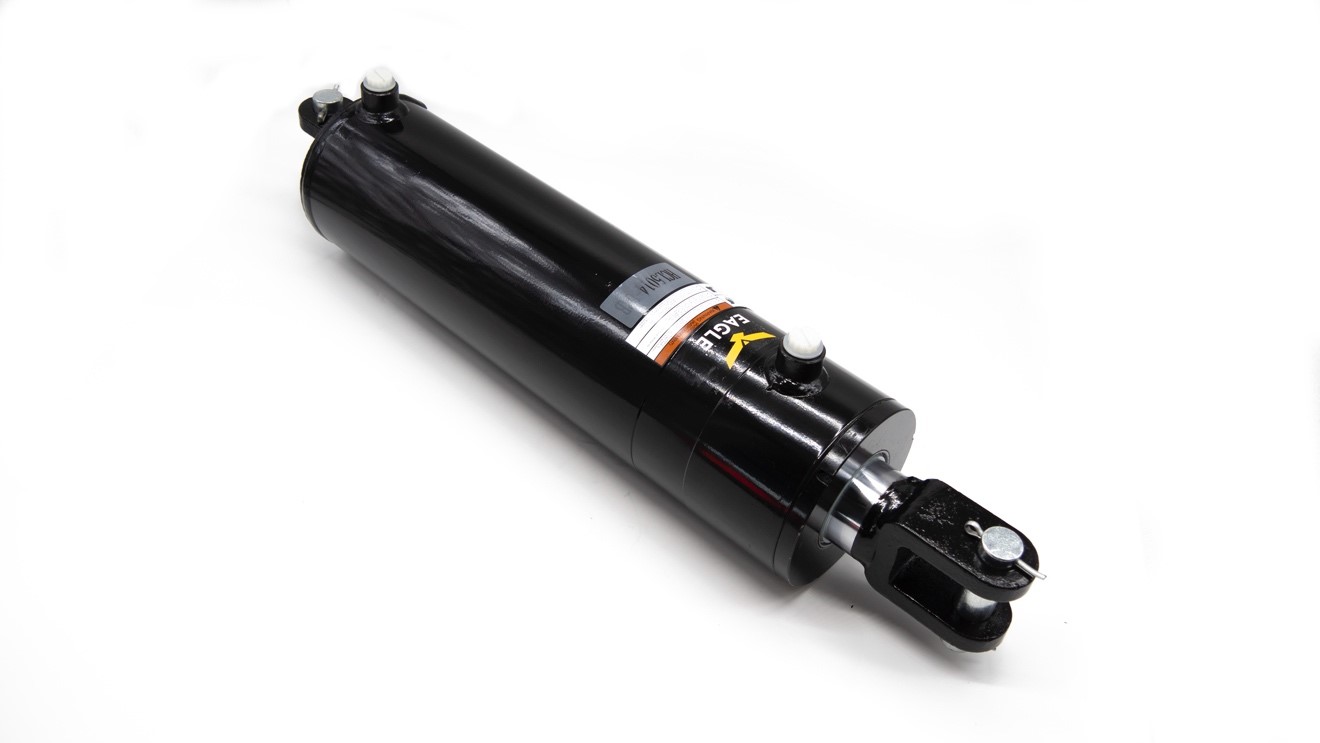

SPECIFICATIONS:
DOUBLE ACTING CYLINDER
STROKE: 10"
BORE: 5"
PORT: SAE #8

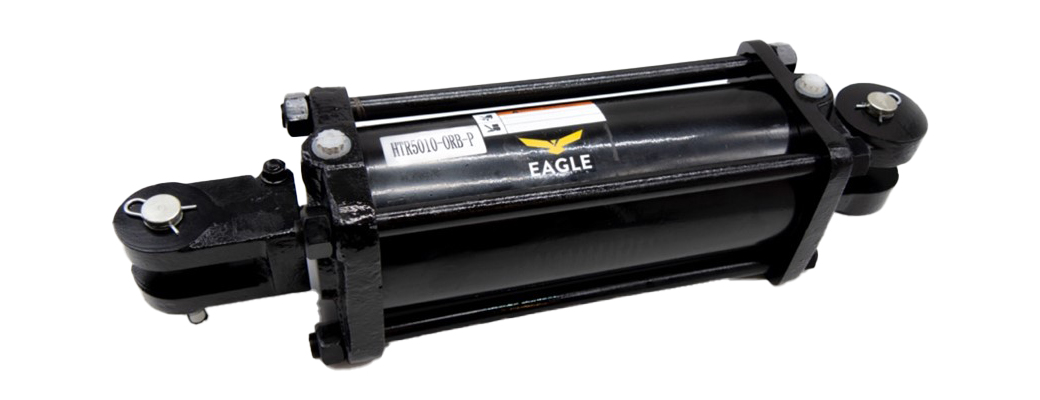

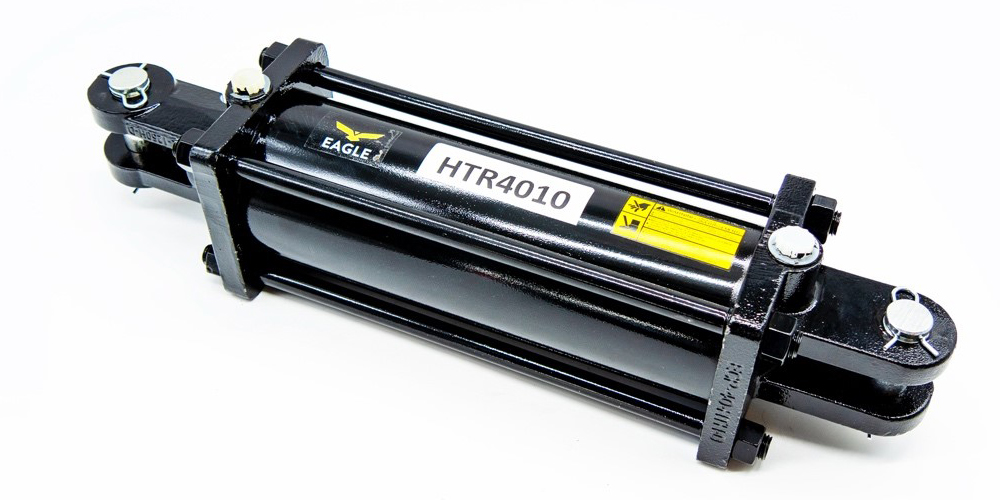

SPECIFICATIONS:
DOUBLE ACTING CYLINDER
STROKE: 10"
BORE: 4"
PORT: SAE #8

SPECIFICATIONS:
DOUBLE ACTING CYLINDER
STROKE: 14"
BORE: 5"
PORT: STANDARD SAE

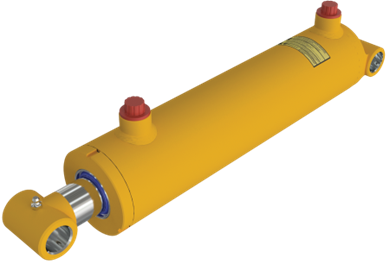

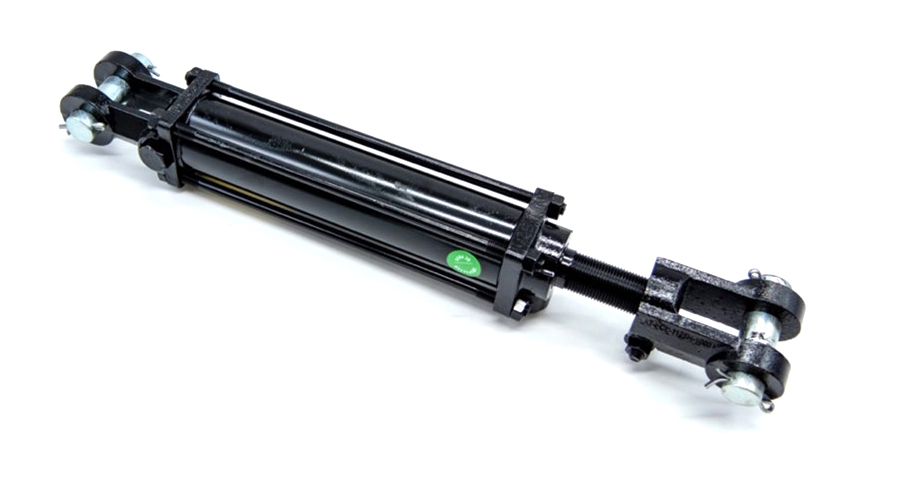

SPECIFICATIONS:
DOUBLE ACTING CYLINDER
STROKE: 8"
BORE: 2"
PORT: STANDARD SAE

SPECIFICATIONS:
DOUBLE ACTING CYLINDER
STROKE: 30"
BORE: 3"
PORT: STANDARD SAE
ORB PORTS 90°

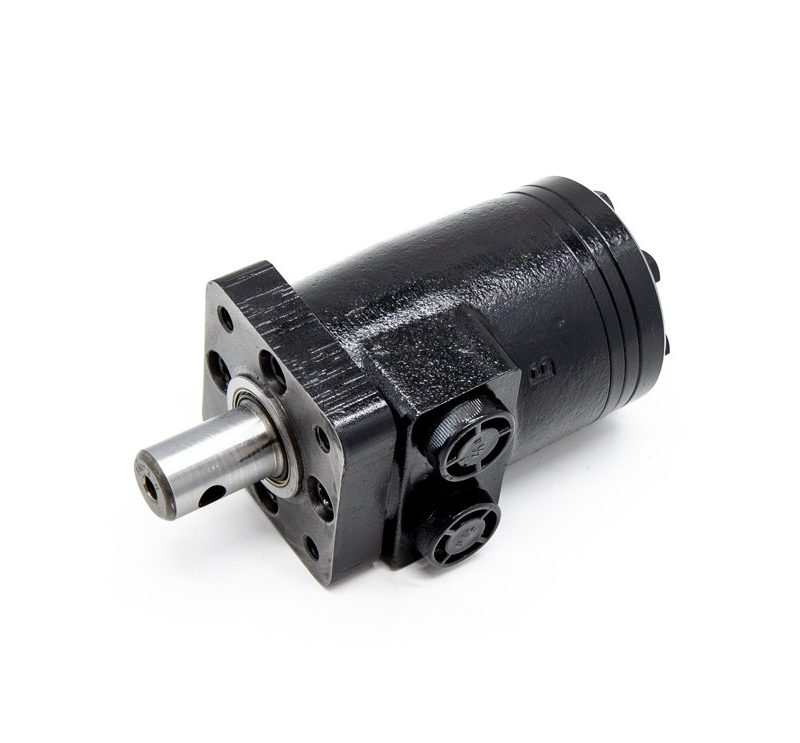

SPECIFICATIONS:
HYD MOTOR 50cc
4 BOLTS
SHAFT 1" w/ KEY
NPT ROLLER BEARING
HIGH EFFICIENCY
COMPACT

TYPICAL APPLICATION:
AGRICULTURE
CONSTRUCTION
CRANE
MATERIAL HANDLING
CONVEYORS
ETC..

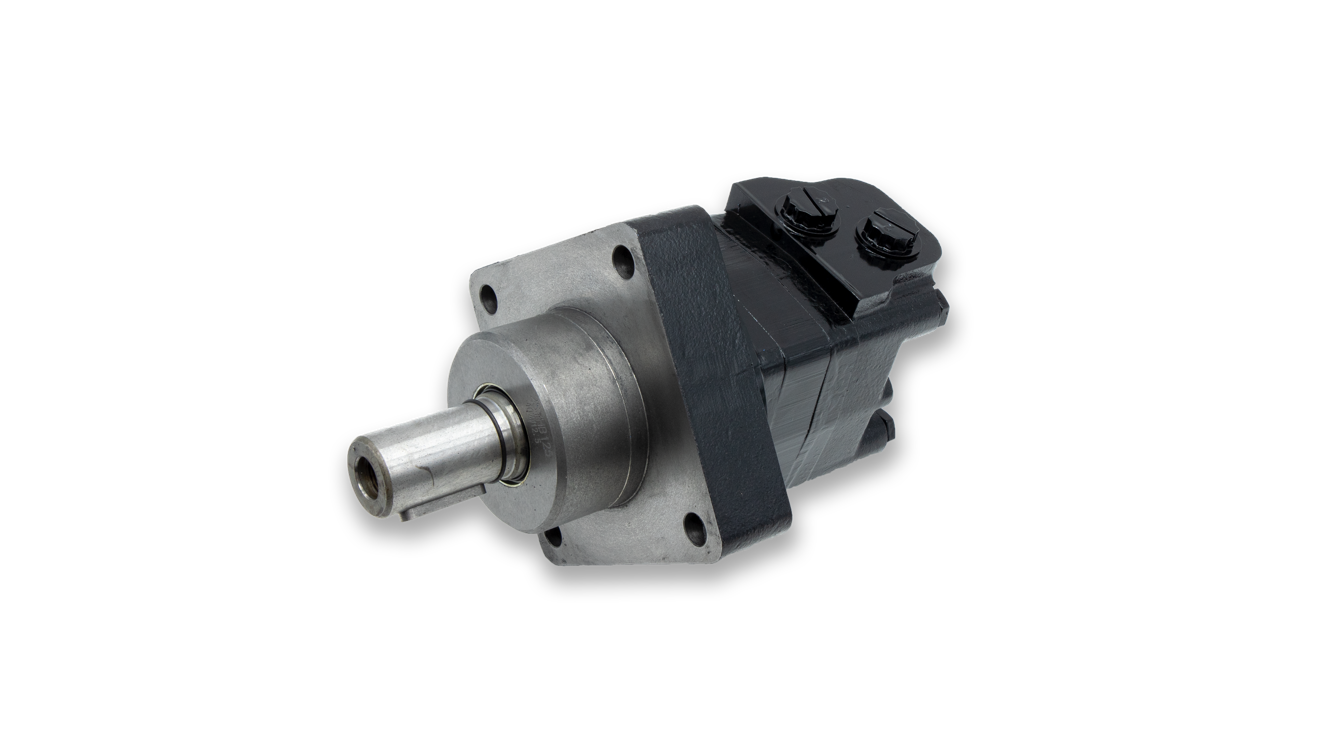

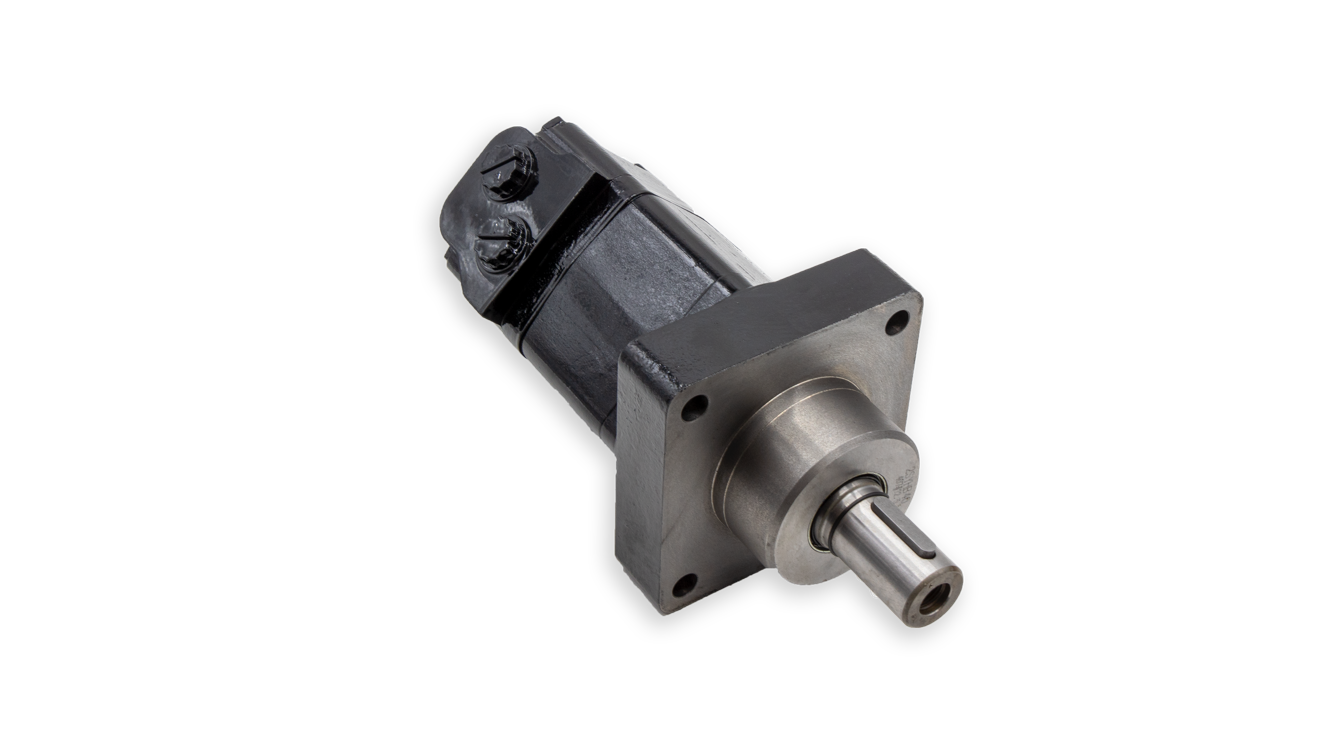

SPECIFICATIONS:
GEROLER GEAR MOTOR
HIGH OVERALL EFFICIENCY
SAE10 PORTS A/B (Drain Port SA4)
Ø1.25" KEYED STRAIGHT SHAFT MAX SPEED: 600 rpm (cont.)
HEAVY RADIAL DUTY

REPLACEMENT OF "WHITE" MOTOR (HB SERIES WHEEL-FLANGE)

TYPICAL APPLICATION:
CAR WASHES
SWEEPERS
WHEEL DRIVES
ETC...

SPECIFICATIONS:
GEROLER GEAR MOTOR
HIGH OVERALL EFFICIENCY
SAE10 PORTS A/B (Drain Port SA4)
Ø1.25" KEYED STRAIGHT SHAFT MAX SPEED: 185 rpm (cont.)
HEAVY RADIAL DUTY

REPLACEMENT OF "WHITE" MOTOR (HB SERIES WHEEL-FLANGE)

TYPICAL APPLICATION:
CAR WASHES
SWEEPERS
WHEEL DRIVES
ETC...

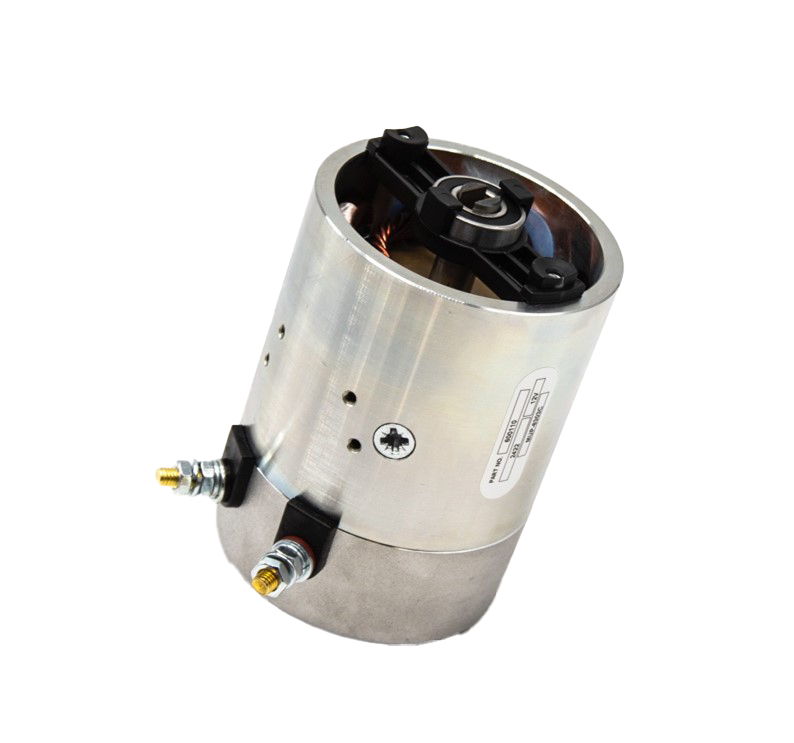

SPECIFICATIONS:
POWER: 12V, 1.6kW
ROTATION: CWDE
IP: 54
CERTIFICATE: UL

DUTY CYCLE:
S2=2.0 min;
S3=7.5%

FINISH:
STEEL HOUSING
CLEAR ZINC PLATING
ALUMINUM ENDHEAD

SHAFT: HARDENED TO RC 46-52

MAXIMUM TORQUE:
6.2 lb.ft 2200 rpm

PACKAGE DIMENSION:
10in x 6in x 11in

WEIGHT: 14.2 LBS

TYPICAL APPLICATION:
THIS MOTOR IS DESIGNED TO DRIVE HYDRAULIC PUMP VIA TANG COUPLING

SPECIFICATIONS:
POWER: 12V, 1.6kW
ROTATION: CWDE
IP: 54
CERTIFICATE: UL

DUTY CYCLE:
S2= 7.5 min;
S3= 20%

FINISH:
STEEL HOUSING
BLACK POWDER COATING
ALUMINUM ENDHEAD
BLACK POWDER COATING

SHAFT: HARDENED TO RC 46-52

MAXIMUM TORQUE:
6.2 lb.ft 2200 rpm

TYPICAL APPLICATION:
THIS MOTOR IS DESIGNED TO DRIVE HYDRAULIC PUMP VIA TANG COUPLING

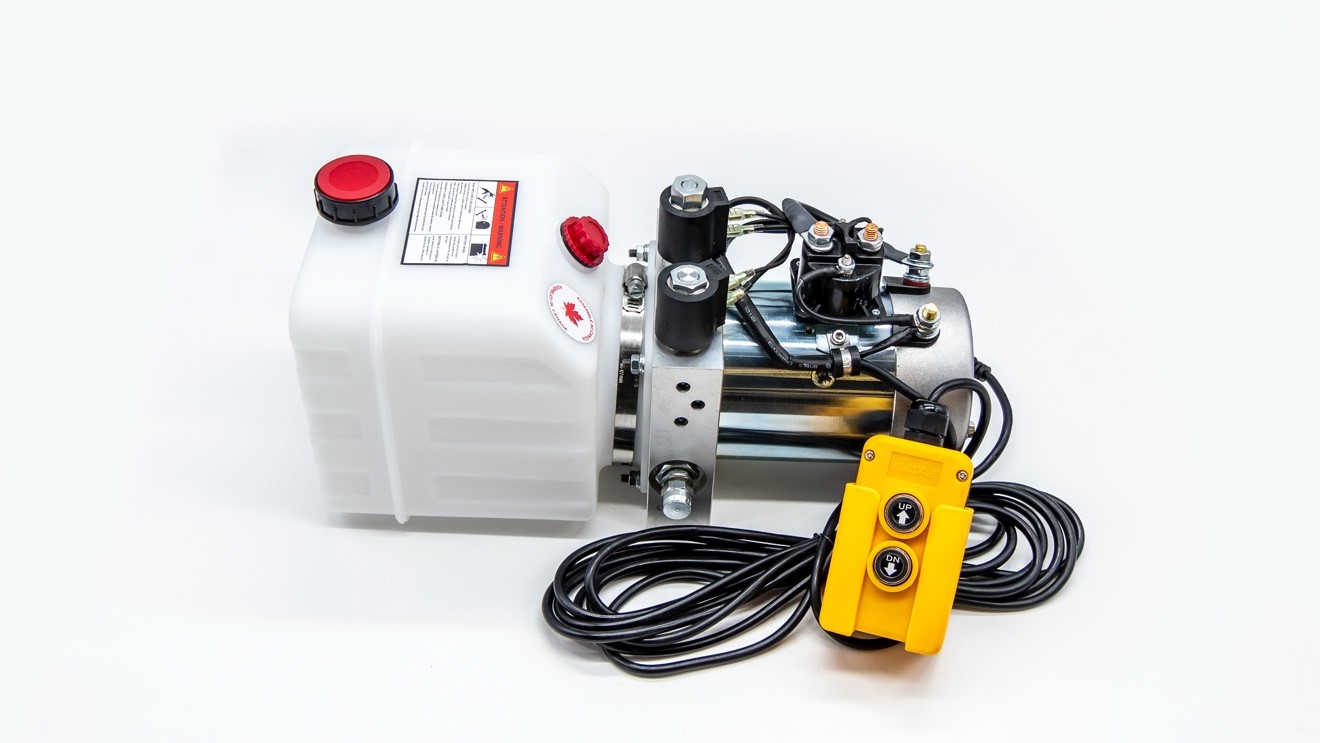

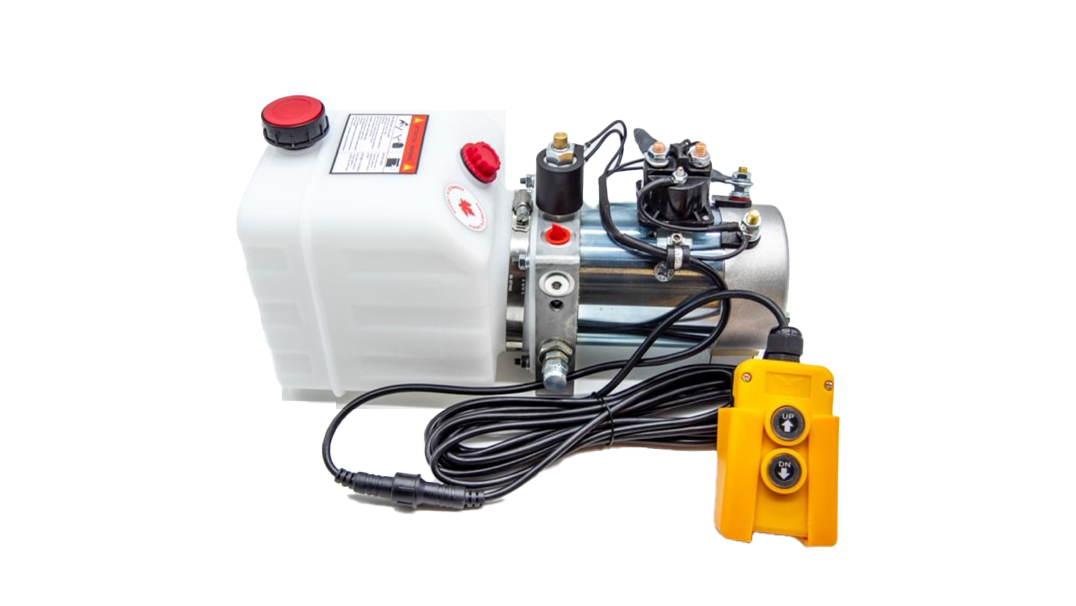

SPECIFICATIONS:
MOTOR: DC 12V
TANK: 4 Liters, PLASTIC
PUMP: 2.5cc
MOUNTING: HORIZONTAL
20' REMOTE CONTROL CABLE
MANUAL OVERRIDE

This power unit has a single acting circuit for power up and gravity down with two SAE 6 (9/16-18) ports for connecting straight or 90° hose. The 2-way, 2-position cartridge valve has a manual override and an internal check valve. This circuit also has a cartridge check valve and adjustable relief valve. The magnetic two button remote control comes with holder and 20' of cable, which has a quick connect at the motor. The gear pump is equipped with a suction screen attached to a 90° elbow inside the tank which comes with a 3/4” NPT breather/dipstick.

TYPICAL APPLICATION:
PRESSURE UP / GRAVITY DOWN SYSTEM
DUMP TRAILER
SINGLE ACTING TELESCOPIC CYLINDERS

SPECIFICATIONS:
MOTOR: DC 12V
TANK: 4 Liters, PLASTIC
PUMP: 2.1cc
MOUNTING: HORIZONTAL
20' REMOTE CONTROL CABLE
MANUAL OVERRIDE

This power unit has a double acting circuit for power up and power down with SAE 6 (9/16-18) A & B ports. The 2-way, 2-position cartridge valve has an internal piloted check valve to prevent internal bypass and maintain constant pressure. This circuit also has a cartridge check valve and adjustable relief valve on the main and internal B port. The magnetic two button remote control comes with 6 meters of cable, which has a quick connect at the motor. The gear pump is equipped with a suction screen attached to a 90° elbow inside the tank which comes with a 3/4” NPT breather/dipstick.

TYPICAL APPLICATION:
PRESSURE UP / POWER DOWN SYSTEM
TAILGATE (with pressure comp. flow control)
DUMP TRAILER

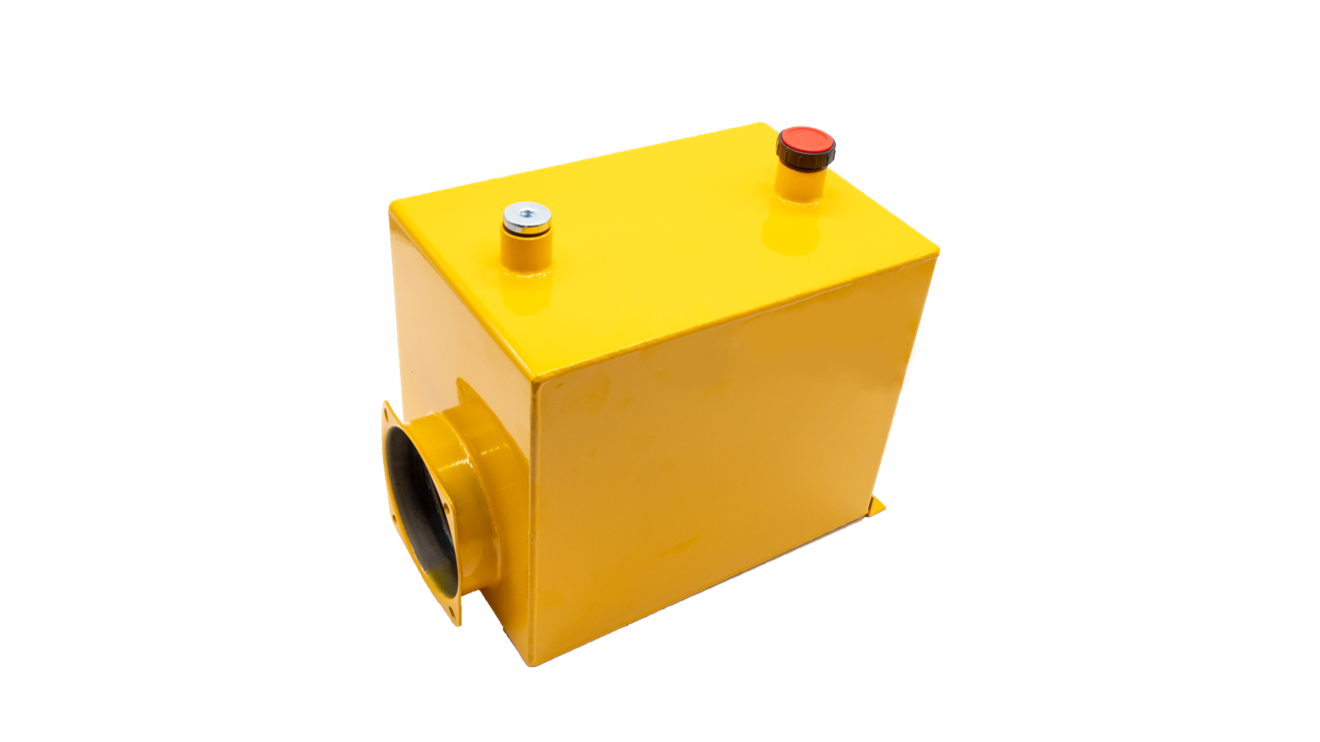

SPECIFICATIONS:
4 GALLONS STEEL TANK FOR HYDRAULIC POWER UNIT.

YELLOW PAINTED
BREATHER CAP 3/4" NPT
RECTANGULAR, OVERALL DIMENSIONS: 14"L x 8"W x 11"H
WEIGHT: 22 Lbs

TYPICAL APPLICATION:
THIS TANK IS DESIGNED TO BE MOUNTED ON A HYDRAULIC POWER UNIT, TO CONTAIN HYDRAULIC OIL

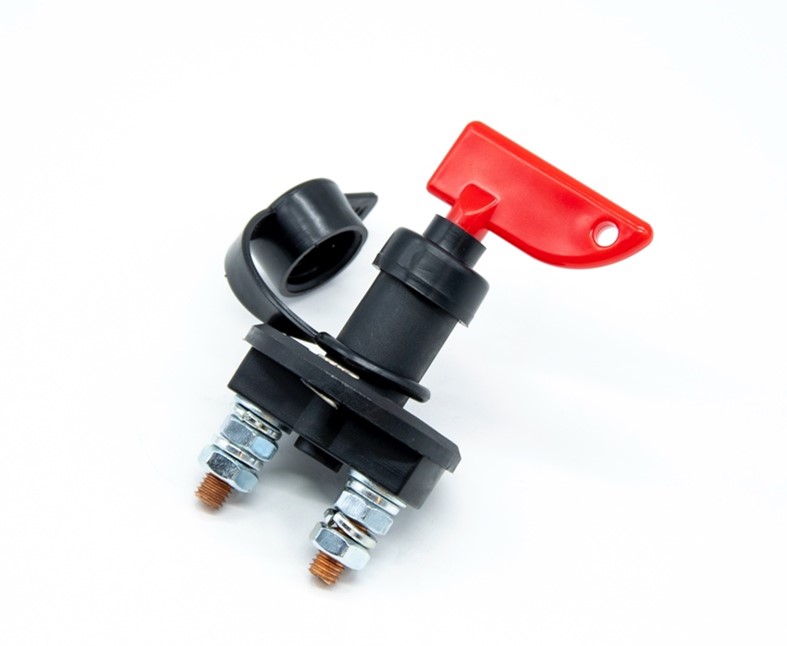

SPECIFICATIONS:
MASTER SWITCH FOR STANDARD DC HYDRAULIC POWER UNIT

MAX VOLTAGE:
660V for 1 MINUTE

MAX INSTANTANEOUS CURRENT:
500A

WORKING TEMPERATURE:
-20°C TO 40°C

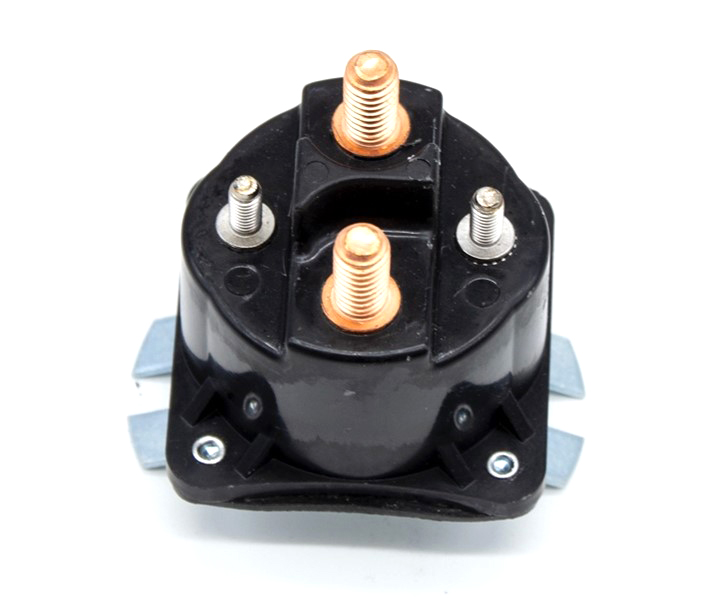

SPECIFICATIONS:
STARTER FOR STANDARD DC HYDRAULIC POWER UNIT. SOLENOID 12V INCLUDES 4 NUTS & WASHERS

COIL VOLTAGE:
12 VDC

IP67 CERTIFIFED

100 amps current rating for use in intermittent duty (2 min. max on time) or heavy duty intermittent (10 min. max on time) applications. The electrical life rating for the SAZ solenoid switches is 60,000 cycles

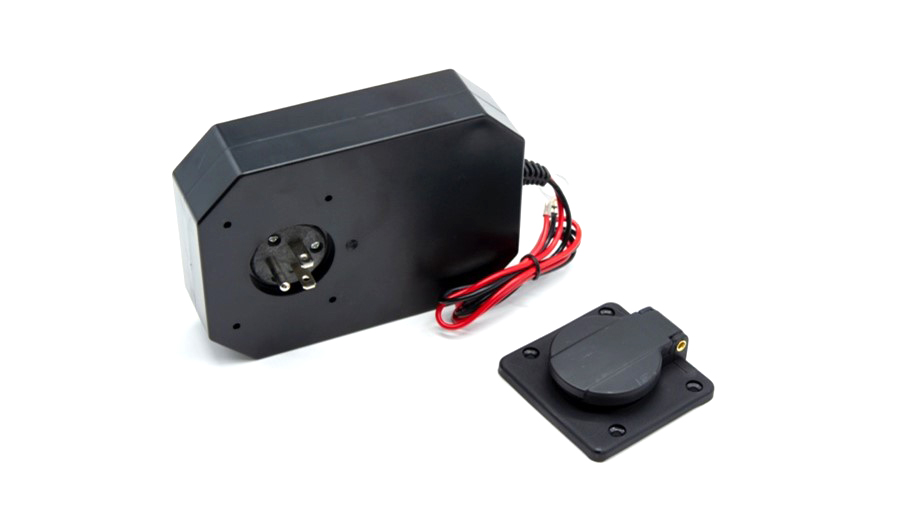

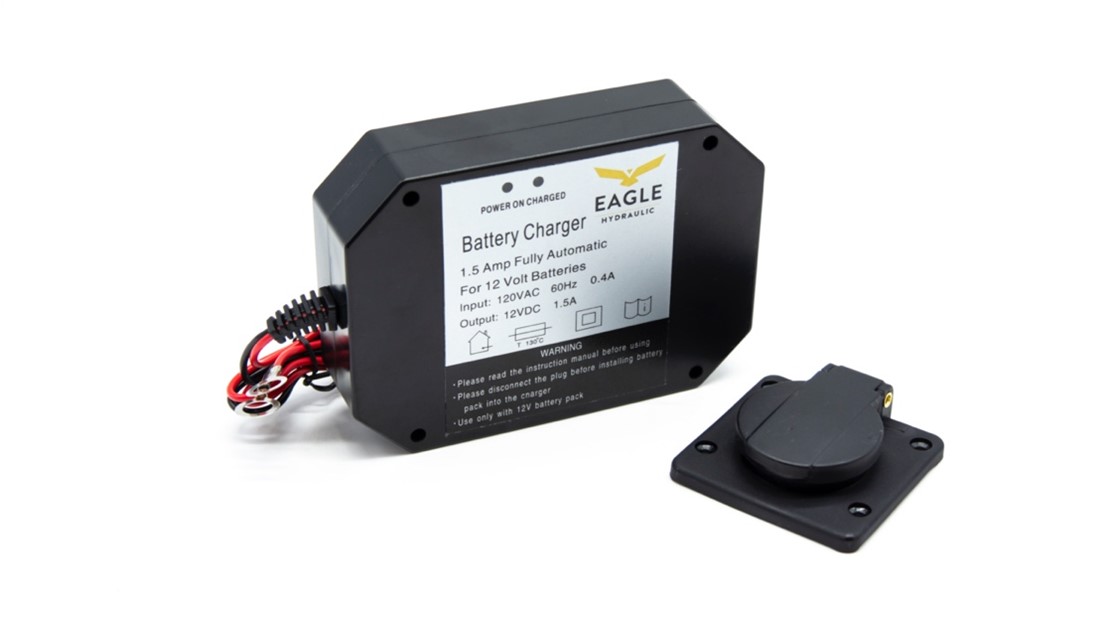

SPECIFICATIONS:

1.5 AMP FULLY AUTOMATIC

FOR 12V BATTERIES

INPUT: 120VAC / 60HZ / 0.4A

OUTPUT: 12VDC / 1.5A
